User-Friendly Benchtop Wire Crimping Machine For Loose And Tape Reel Terminals
Intro:
RS-Mute 2.0 T ultra-mute terminal machine adopts high-tech frequency conversion technology; electronic precise positioning; Motor only works when crimping,so noise is smaller than the traditional terminal machine, and save power; the mold adjustment is more convenient and fast; the traditional terminal clutch is avoided, Electromagnets and other common faults! The clutch, Electromagnets and other common faults which are caused by traditional machine are avoided.
Suitable:
Various type of terminals, such as tape and reel vertical/horizontal terminals, or loose terminals. We can provide applicator for hoziontal tape terminal, vertical tape terminal, loose-piece terminal.
- 1)Can change die for horizontal, vertical and single terminals.
- 2)Stable voltage, fast speed, high accuracy.
- 3)Computer Terminals, DC Terminals, Single bulk Terminals, Taped Terminals
- 4)Light structure, easy to move, small noise.
Parameters
According to your wire and teminals, we can select a suitable machine for you.
| Model | RS-1.5T mute terminal | RS-2.0T mute terminal | RS-3.0T mute terminal | RS-4.0T mute terminal |
| Press capacity | 1.5 ton | 2.0 ton | 3.0 ton | 4.0 ton |
| Appearance size | 260×300×600mm | 280×320×650mm | 260×320×680mm | 300×380×750mm |
| Motor power | 0.55KW | 0.75KW | 1.1KW | 1.55KW |
| Power supply | AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz |
| Stroke distance | 30MM | 30MM | 30MM | 30MM |
Features
- Automatic high speed super mute terminal crimping machine. The machine is easy to operate and repair, which is designed for high output and low maintenance.
- With frequency conversion technology, electronic precision positioning, noise is smaller than traditional terminal machine when it works. Power saving, convenient and easy to adjust mold
- Can be equipped with different die/applicator. And easy to change
Wire Crimping Machine buttons
POWER:ON Turn On Machine Power.
1. OFF Turn Off machine power
2．LAMP: Press it to turn on. Press again to turn off.
3．Counter: Accurately count the times of crimping.
4．Clean: Clear the counter to zero.
5． Indicator: Red means manual mode. Green means Automatic Mode.
6． Auto/Manual: Change between Automatic and Manual mode.
7． Manual UP: When indicator is red, press this button, slide will move up.
8． Manual DOWN: When indicator is green, press this button, slide move down
9． Reset: When power is plugged, machine can not work properly, use Reset button. Machine will resume normal working.

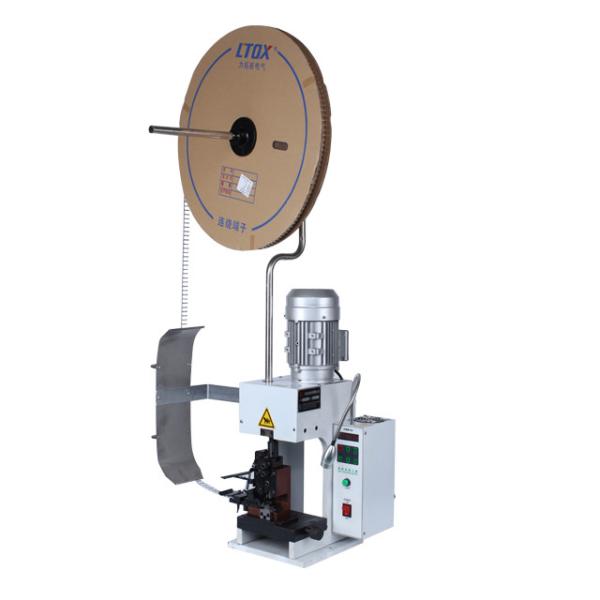

Pictures of Wire crimping machine
